Tracking Beacons - Indoor Tracking
Product number:
BEAC-5

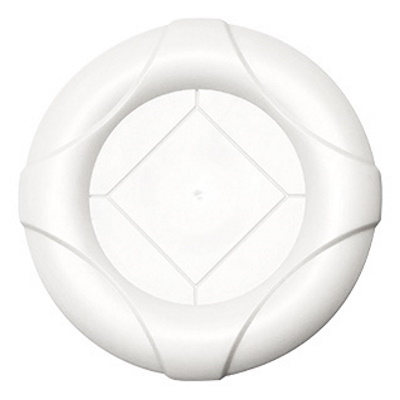

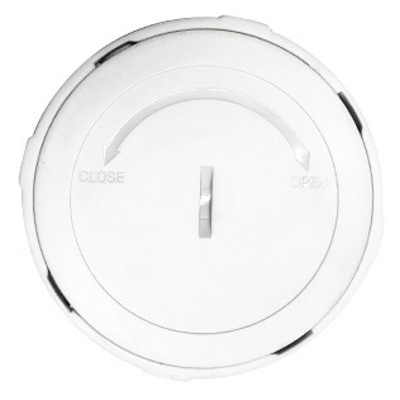

Product information "Tracking Beacons - Indoor Tracking"
Tracking Beacons - Indoor Locating
Bluetooth beacons are low-power hardware transmitters that send identifiers to portable electronic devices in the vicinity.
Thanks to this technology, our emergency call devices are suitable for Man Down Alarm - TMM-7 4G and WLAN Emergency Call - TMM-14 W to pinpoint your position accurately even inside buildings
where satellite positioning would otherwise not be possible.
Our devices scan for beacons in the environment and capture the strongest signal to determine where they are.
General specification
- Power supply: Built-in rechargeable battery
- Battery type: 2 * AAA (LR03) (not supplied with purchase)
- Battery life: 2 to 3 years
- Colour: White
- Sizes: Φ61mmH: 18mm
- Net weight: 46.2 g
Maximum number of transmitters: 20 pieces
Transmission range up to 100 m in open space
Hardware specifications
- Chipset: TI CC2640R2F
- Standard: BLE 5.0
- Transmission power: 5 dBm (max)
- Power range: -23 - +5 dBm
- Gain: 3dBi (max)
- Material: ABS plastic
- Radiation field: Omnidirectional
- Support: iBeacon, AltBeacon, Eddystone
