Fall detection system 4G
Product number:
PNA-11-4G
Product information "Fall detection system 4G"
Fall detection system 4G
PNA-11-4G
The modern emergency call solution for LTE / 4G networks with GPS and various automatic alarm types.
Freely programmable with a user-friendly system
- Emergency call button
- Fall alarm
- Location function
- Waterproof IP67
- 2G/3G/4G LTE
- Location alarm
- Collision alarm
- Battery level warning
- Hands-free kit
- Up to 7 days battery life
This mobile emergency call device protects you wherever there is a mobile phone signal. If no 4G network (LTE) is available, the device will attempt to connect via a 3G or 2G network. If you are in a dead zone, the device will start an alarm with a vocal prompt.

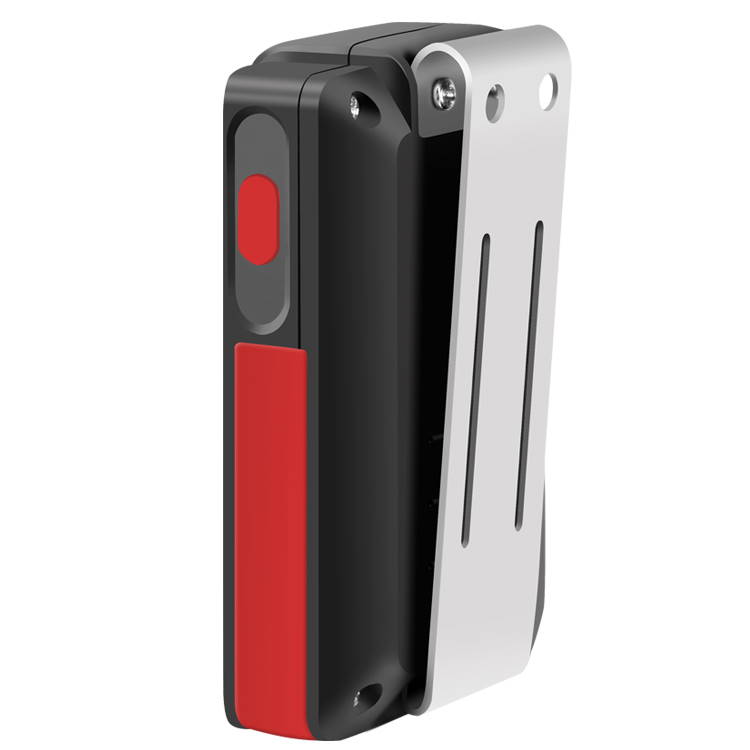

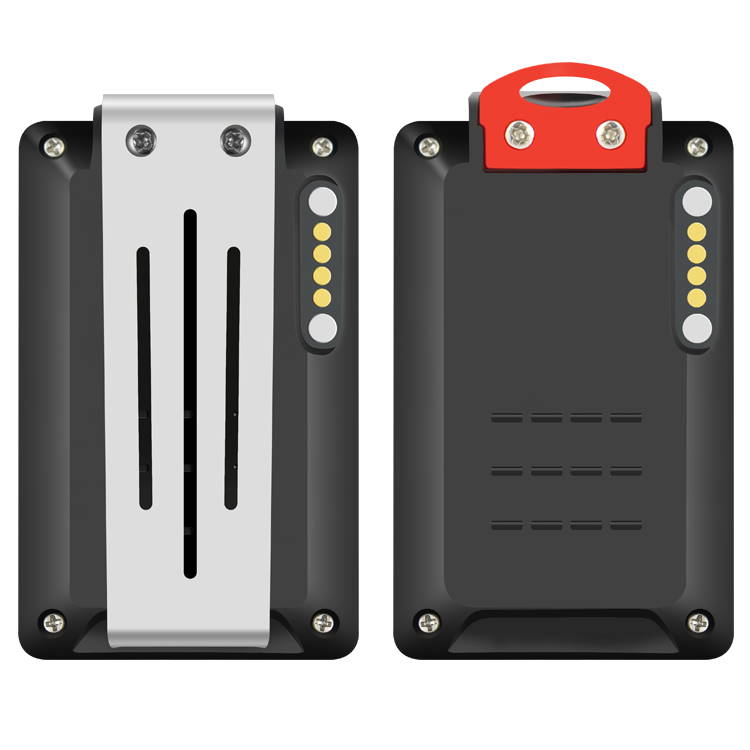

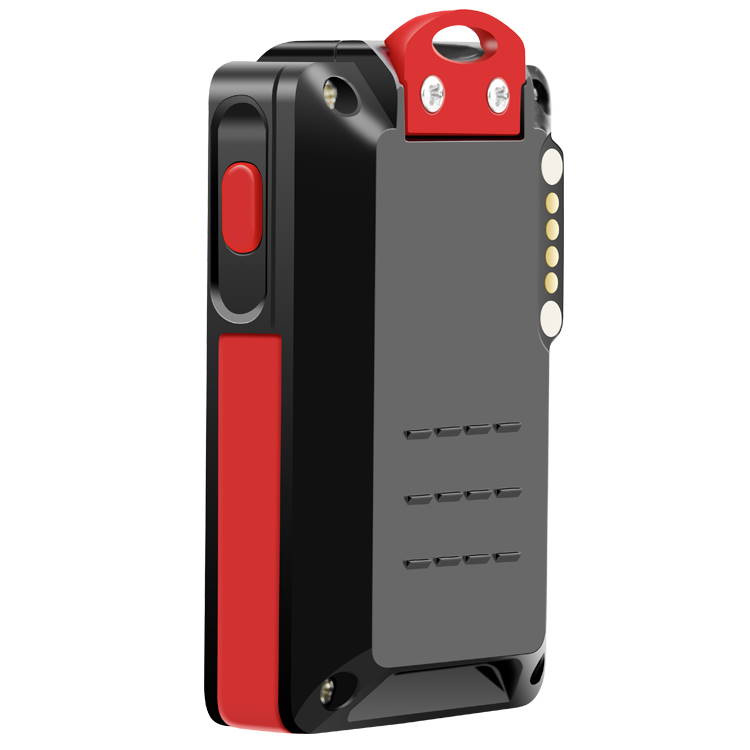

A resistant device for outdoor use made of particularly sturdy plastic which can be fitted with a lanyard or metal belt clip, warns when the battery is low, is waterproof, has up to 3 or 7 days of runtime and numerous configuration options, such as which numbers the device can call, whether it should automatically answer a call and much more. Uses the 4G network (LTE) and is therefore also suitable for Switzerland

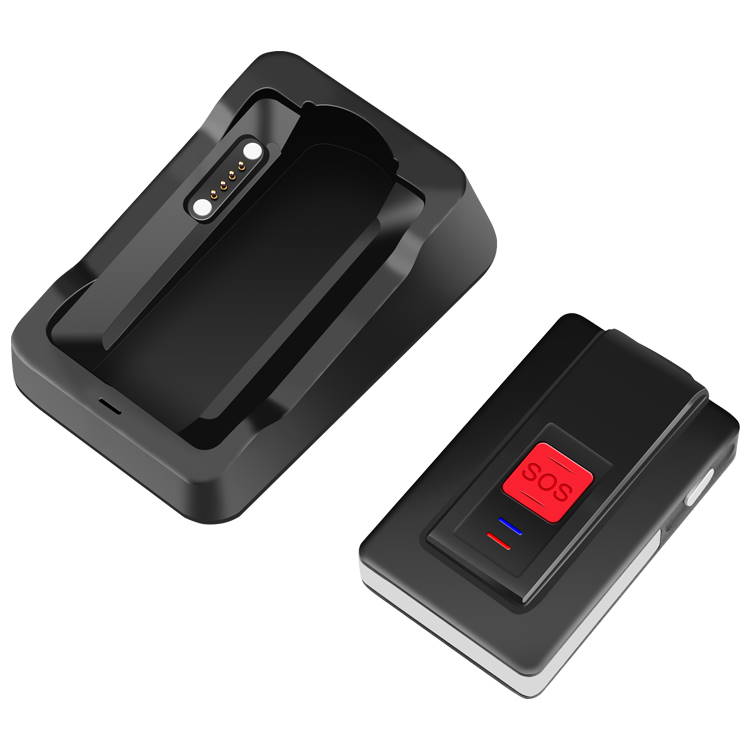

Includes a charging station

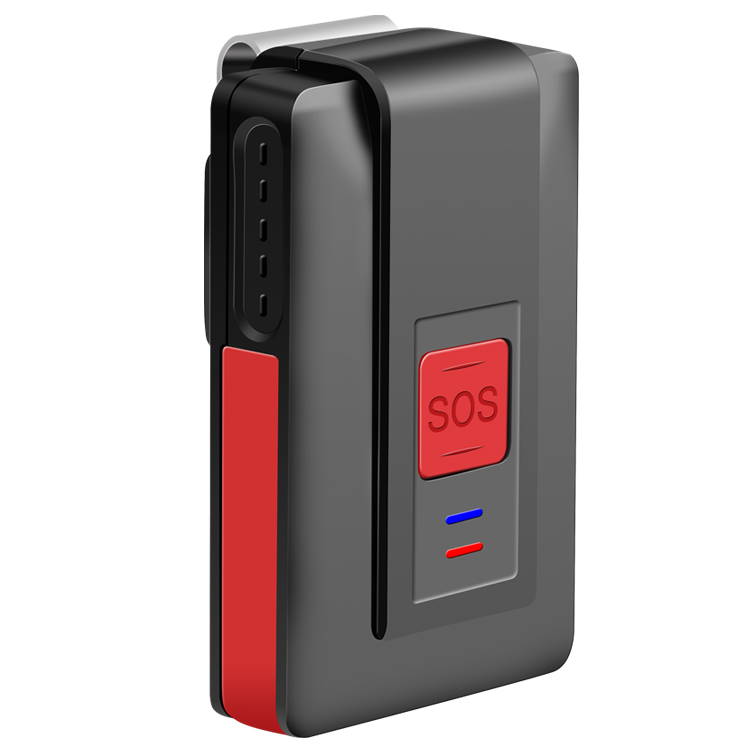

Emergency call button
When an endangered person presses the SOS / panic button, an emergency chain of up to 10 phone numbers is started and it sends the full location details via SMS.Fall alarm
You are immediately notified when a possible fall or collision has occurred. Thanks to the smart fall detection, there are hardly any false alarms.Charging station

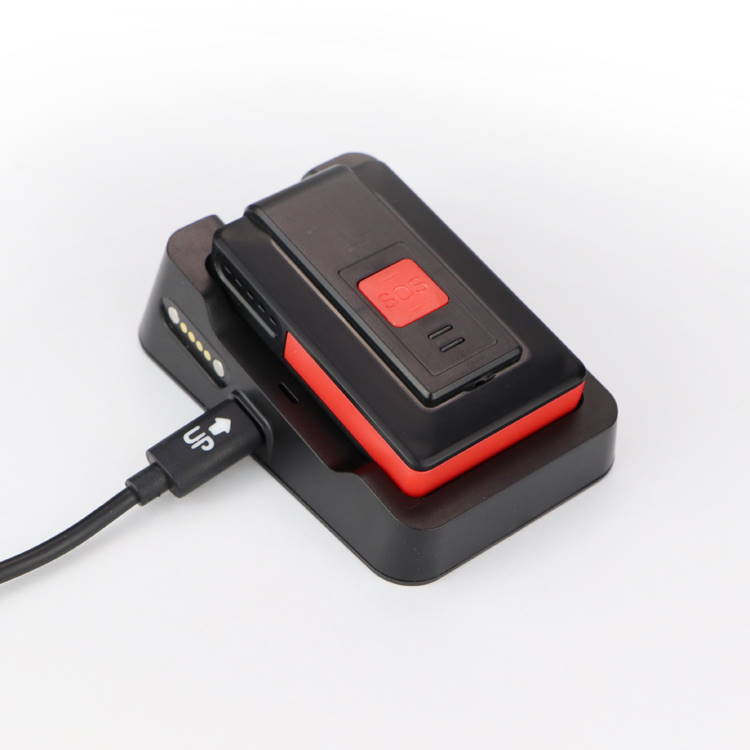

You simply leave your device in the charging station in the evening and pick it up again in the morning.Two-way communication
The handsfree feature allows you to talk to the wearer normally, not only in an emergency, but they can also call the device at any time.A-GPS support
Assisted GPS works with a satellite network to quickly identify your location. A-GPS is faster than traditional GPS and works faster so you can get help quickly.Waterproof
The unit is dustproof and waterproof according to IP 67Battery status warning
Informs you as soon as the battery charge falls below a certain percentage.Both the head office and the executing agency will be informed.
4G connectivity
If no 4G / LTE signal is available, 3G / 2G network will be used.Included in delivery:
- Operating manual
- USB charger
- USB charging cradle
- Screwdriver
- Lanyard
General specification
Dimension:
64mm * 39mm * 19mm
Weight:
55 g
Accumulator:
3.7 V, 1100 mAh
Charge voltage:
5V DC
Operating temp.:
-20 ° C to + 65 ° C
Battery life:
up to 72 hours with normal use
Waterproof:
IP67 standard
Hardware specifications
Sensor:
Motion & Vibration Sensors
Connections:
4 pin magnet for charging
SIM cards:
Nano SIM card
Built-in microphone & speaker
Frequencies
2G Europe: 900/1800MHz
3G HSPA: B1/B2/B5/B8
4G LTE Bands: B1/B3/B7/B8/B20
GPS
AGPS:
Yes
GPS sensitivity:
-165dBm
GPS accuracy:
< 10m
Cold start:
approx. 32S
Warm start:
approx. 1S
