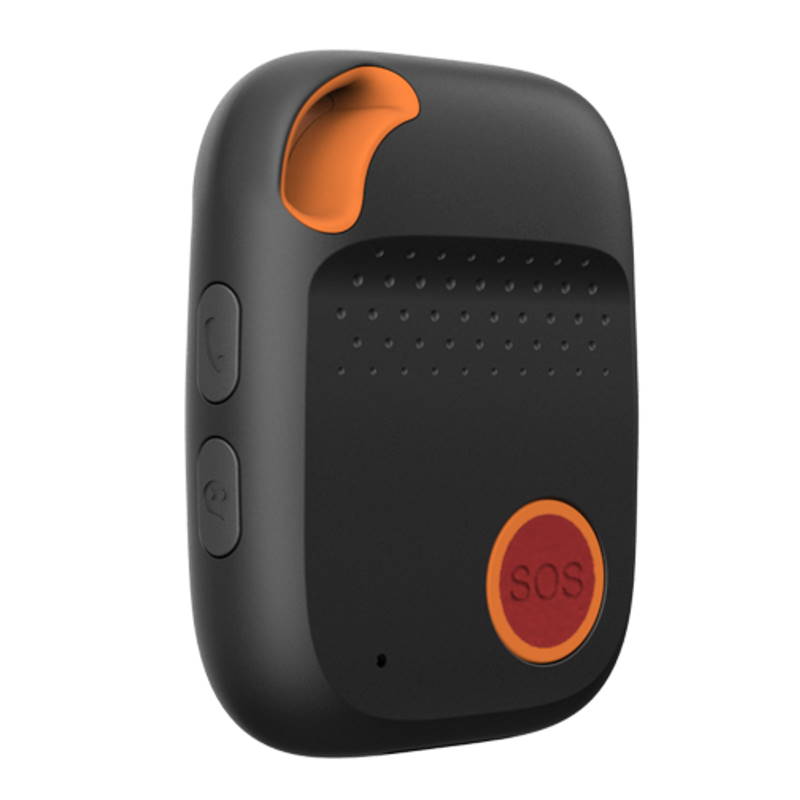

WLAN Emergency Call - TMM-14 W
Product number:
TMM-14-W
Product information "WLAN Emergency Call - TMM-14 W"
WLAN deadman detector - WiFi 2G/3G/4G LTE
TMM-14 W
This device can simultaneously register via
LTE 4G / 3G / 2G and via the WLAN
connect to an emergency call centre.
If a voluntary or involuntary alarm is triggered, your contacts or a monitoring centre are called immediately. In an emergency, this unit can call up to 10 freely configurable telephone numbers, send SMS or connect to an automated control centre.
If there is no 4G network (LTE) available, the device tries to connect via 3G or 2G or the local WLAN. In addition, you can use our M2M SIM cards, which can dial in via all 3 major networks, in order to reduce the radio gaps even further.
This device also works optionally only via WLAN and can be connected to a control centre. This makes it possible to control sirens, stop production lines or whatever you need.
Emergency call button
When an endangered person presses the emergency call button, an emergency call chain is started and the location is sent by SMS. Up to 10 numbers can be alerted.Fall alarm
You are immediately notified when a possible fall or collision has occurred. Thanks to the quick warnings, you can react immediately.No movement alarm
A motion sensor uses several technologies to detect movement or lack of movement. If the unit is not moved for a freely definable time, it triggers an alarm, unless it is in the charging cradle, where the alarm is switched off.Position alarm
As soon as the device exceeds a freely adjustable angle for a freely adjustable time, a pre-alarm is triggered to give the wearer the possibility to cancel a false alarm. During the pre-alarm, the alarm can be cancelled by simply standing the device upright. The device must be worn upright on the body, on the waistband, belt or in the breast pocket.Technical alarm
If the device is in a dead zone or the connection to the emergency call centre is interrupted, the device warns the wearer with a voice announcement.charging station

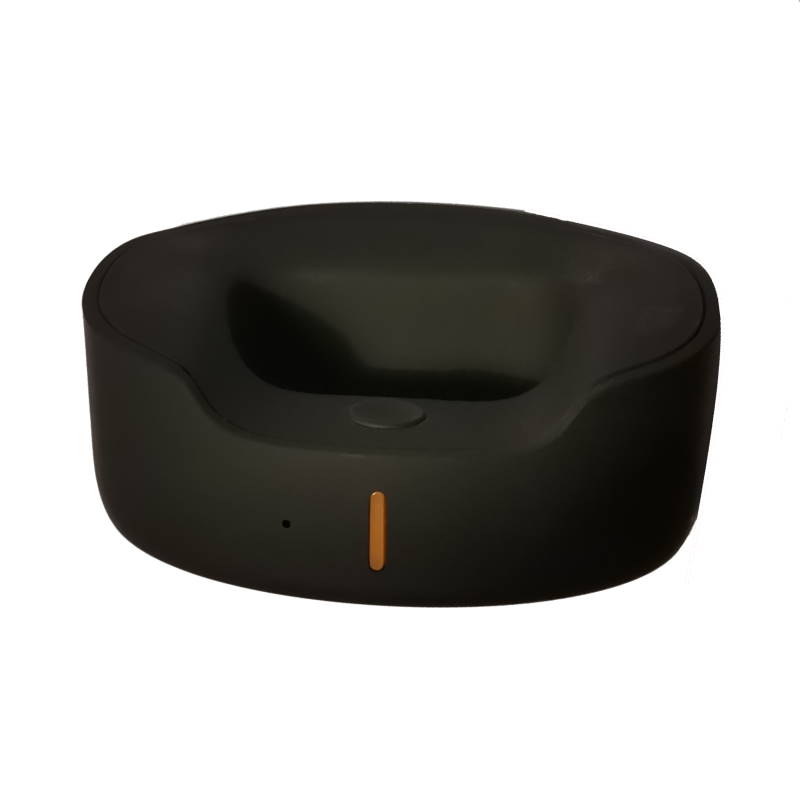

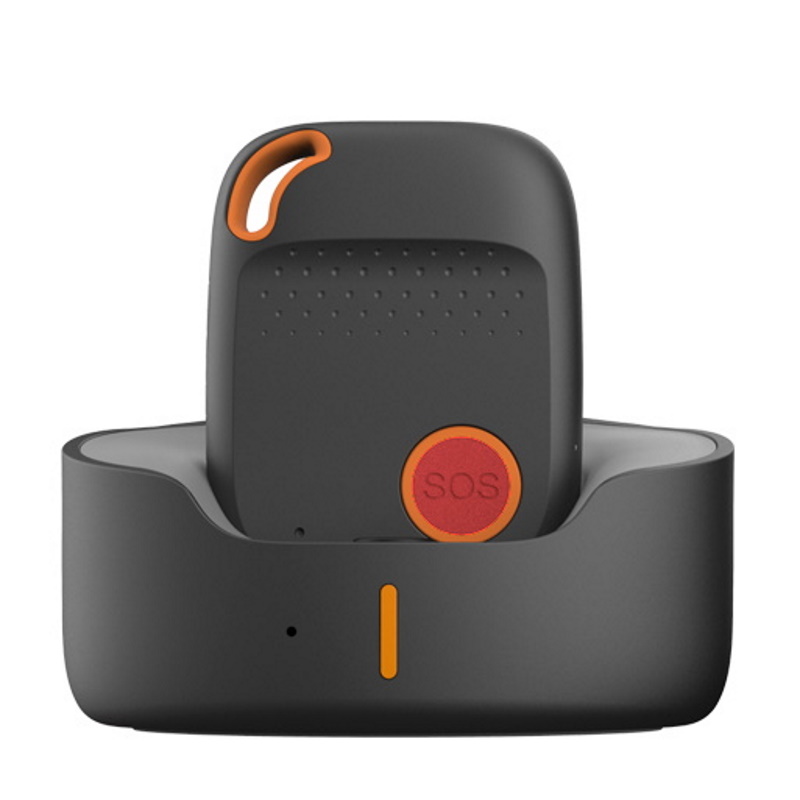

You simply leave your EV-04 in the charging station in the evening and pick it up again in the morning.Waterproof
The unit is dustproof and waterproof according to IP 674G connectivity
If there is no 4G signal, 3G / 2G or WLAN / WIFI is used.Two-way calls
Use two-way calling to call your loved ones anytime. You can even call them at the touch of a button.Bluetooth 5.0 connectivity
Connect the charging station to locate it indoors.Location technologies
Real-time tracking, up to 4 tracking technologies: GPS, WIFI, Bluetooth and LBS.A-GPS support
Assisted GPS works with a satellite network to quickly identify your location. A-GPS is faster than traditional GPS and works faster so you can get help quickly.Battery status warning
Informs you as soon as the battery charge falls below a certain percentage. Can inform both the centre and the wearer.Wireless charging
A QI charger enables fast charging and is easy to use.Included in delivery:
- Operating manual
- USB charging cable
- USB charger
- Screwdriver
- Lanyard
General specification
Dimension:
62 mm * 47.9 mm * 18 mm
Weight:
60 g
Accumulator:
3.7 V, 1000 mAh
Charge voltage:
5V DC
Operating temp.:
-20 ° C to + 80 ° C
Battery life:
Up to 120 hours of normal use
Waterproof:
IP67 standard
Hardware specifications
MCU:
Nordic NRF52832
Sensor:
Motion & Vibration Sensors
Connections:
4 pin magnet for charging
SIM cards:
Nano SIM card; ESIM card
WIFI:
802.11 b/g/n, 2.4G
BLE:
BT5.0 LE
Built-in microphone & speaker
4G / LTE
AU: B1 / B3 / B5 / B7 / B28
EU: B1 / B3 / B7 / B8 / B20
North America: B2 / B4 / B5 / B7 / B12 / B17 / B13
GPS
GPS chipset:
Supports GPS and Glonass
AGPS:
Yes
Reception freq.:
1575.42 MHz
Cold start:
approx. 26s
Warm start:
approx. 2s
