Man Down Alarm - TMM-7 4G
Product number:
TMM-7-4G
Product information "Man Down Alarm - TMM-7 4G"

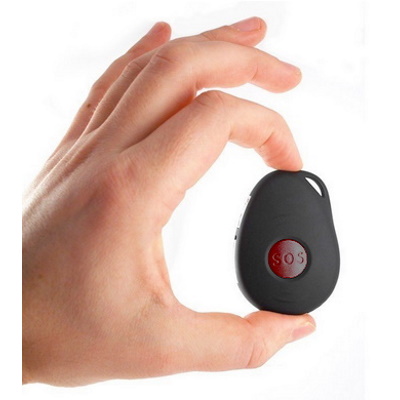

Man Down Alarm for 2G/3G/4G LTE

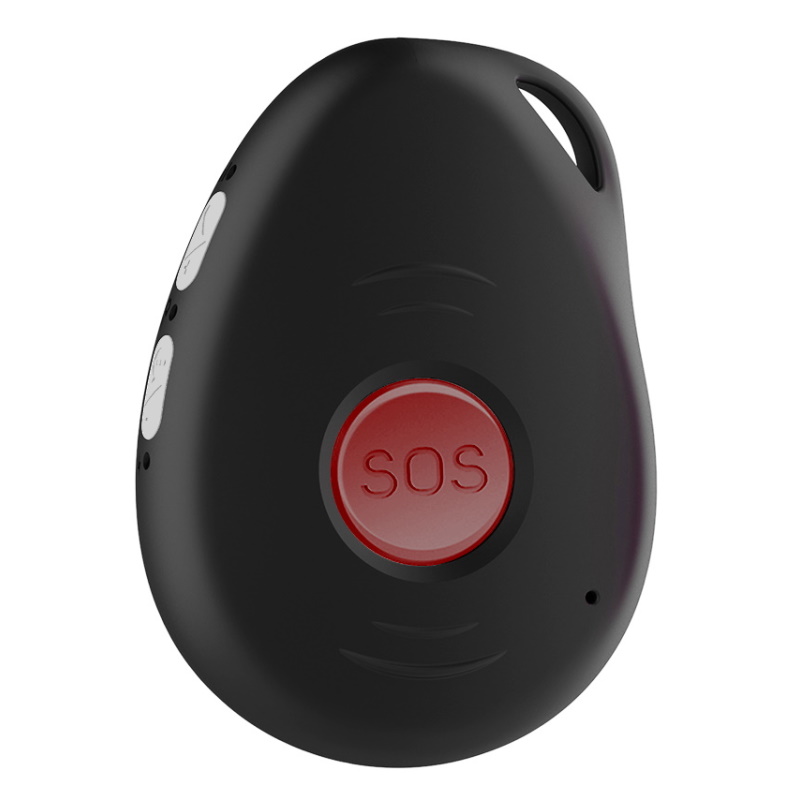

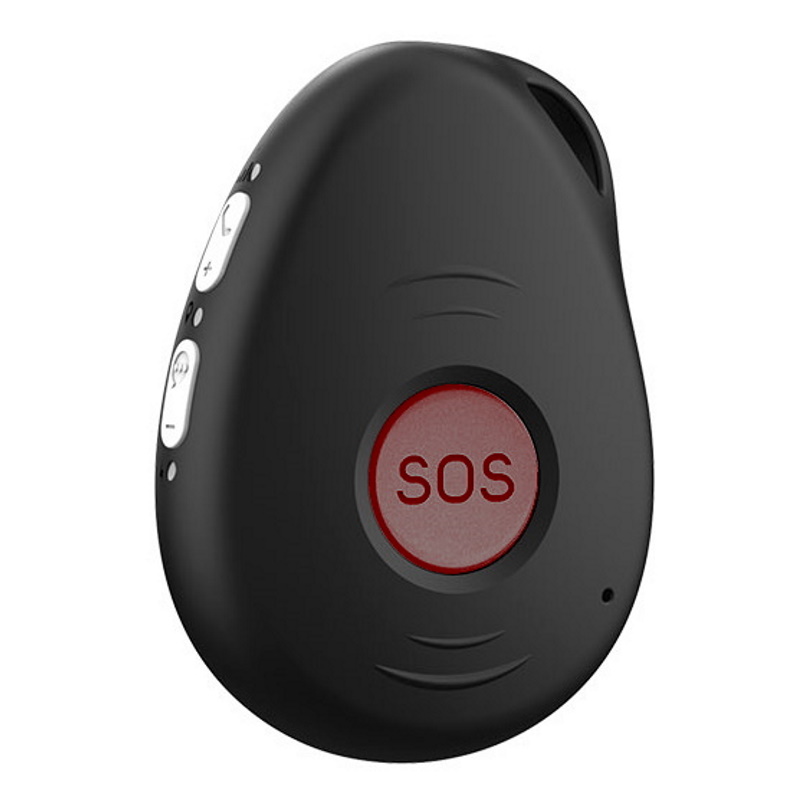

TMM-7 4G
The modern emergency call solution for LTE / 4G networks with GPS and BLE 5.0 indoor positioning and various automatic alarm types.
Freely programmable with simple operation.
- Emergency call button
- Fall alarm
- Technical alarm
- Location function
- Waterproof IP67
- 2G/3G/4G LTE
- Location alarm
- Quiet alarm
- Location siren
- Battery level warning
- hands-free kit
- Up to 7 days running time
This mobile emergency call device protects you wherever there is a mobile phone signal. If no 4G network (LTE) is available, the device tries to connect via 3G or 2G network. If you are in a dead zone, a technical alarm will sound with a voice prompt.
This device can switch on a siren for easy location, warns when the battery is low, is waterproof, has a runtime of up to 3 or 7 days and numerous configuration options, such as which numbers the device can call, whether it should automatically answer a call and much more.
Emergency call button
When an endangered person presses the SOS / panic button, an emergency chain of up to 10 phone numbers is started and it sends the full location details via SMS.Quiet alarm
The motion sensor uses multiple technologies to detect movement or lack of movement. If the unit is not moved for a freely definable time, it triggers an alarm, unless it is in the charging cradle, where the alarm is automatically deactivated.Technical alarm
If the device is in a dead zone or the connection to the emergency call centre is interrupted for any other reason, the device warns the wearer with a voice announcement.Fall alarm
You are immediately notified when a possible fall or collision has occurred. Thanks to the smart fall detection, there are hardly any false alarms.Location alarm
As soon as the device exceeds a freely adjustable angle for a certain time, a pre-alarm is triggered. During this time, the alarm can be cancelled by raising the device, otherwise the emergency chain starts. The device is worn upright on the body, either on the waistband, belt or in the breast pocket.Location siren
A siren can be switched on to facilitate locating the person in confusing terrain.Charging station

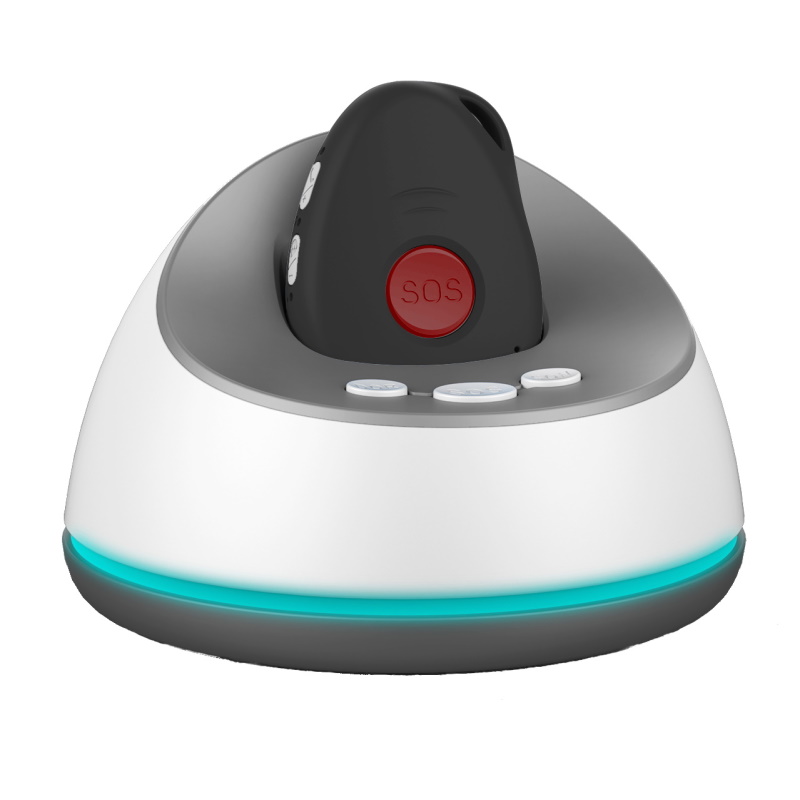

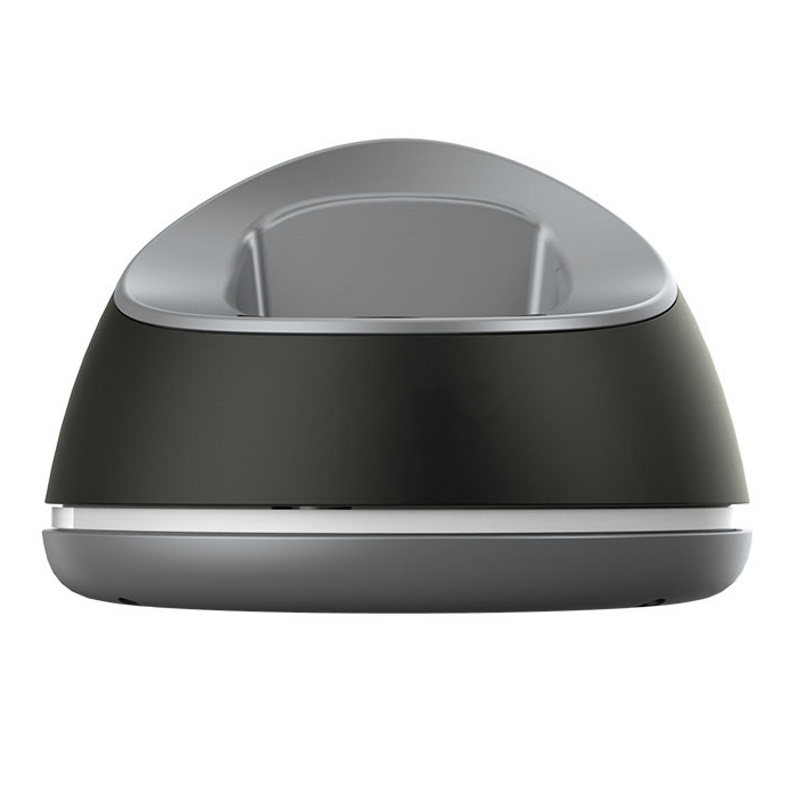

You simply leave your device in the charging station in the evening and pick it up again in the morning.Two-way communication
The handsfree feature allows you to talk to the wearer normally, not only in an emergency, but they can also call the device at any time.4 Locating Technologies
Real-time tracking, up to 4 location technologies: GPS, WIFI, Bluetooth and LBS.A-GPS support
Assisted GPS works with a satellite network to quickly identify your location. A-GPS is faster than traditional GPS and works faster so you can get help quickly.Waterproof
The unit is dustproof and waterproof according to IP 67Battery status warning
Informs you as soon as the battery charge falls below a certain percentage.It will inform both the head office and the carrier.
4G connectivity
If no 4G / LTE signal is available, 3G / 2G network will be used.Included in delivery:
- Operating manual
- USB charging cable
- USB charger
- Screwdriver
- Lanyard
General specification

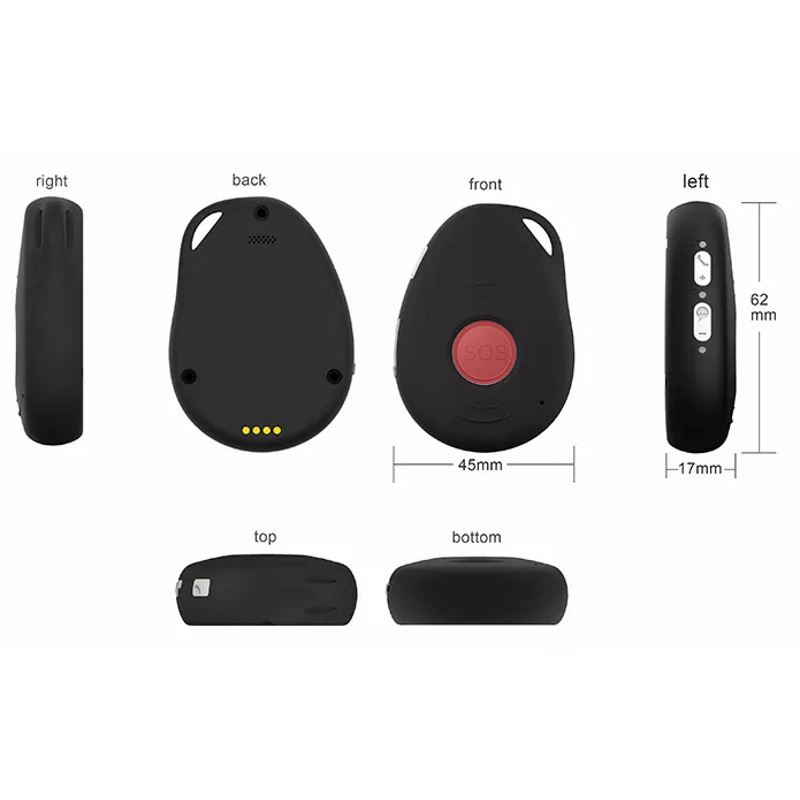

Dimension:
61mm * 44mm * 16mm
Weight:
35 g
Battery:
3.7 V, 850 mAh
Charge voltage:
5V DC
Operating temp.:
-20 ° C to + 80 ° C
Battery life:
Up to 120 hours of normal use
Waterproof:
IP67 standard
Hardware specifications
MCU:
Nordic NRF52832
Sensor:
Motion & Vibration Sensors
Connections:
4 pin magnet for charging
SIM cards:
Nano SIM card; ESIM card
BLE:
BT5.0 LE
Built-in microphone & loudspeaker
4G / LTE
AU: B1 / B3 / B5 / B7 / B28
EU: B1 / B3 / B7 / B8 / B20
North America: B2 / B4 / B5 / B7 / B12 / B17 / B13
GPS
GPS chipset:
UBlox G7020 (AGPS Support)
AGPS:
Yes
Reception freq.:
1575.42 MHz
Cold start:
approx. 32S
Warm start:
approx. 1S
